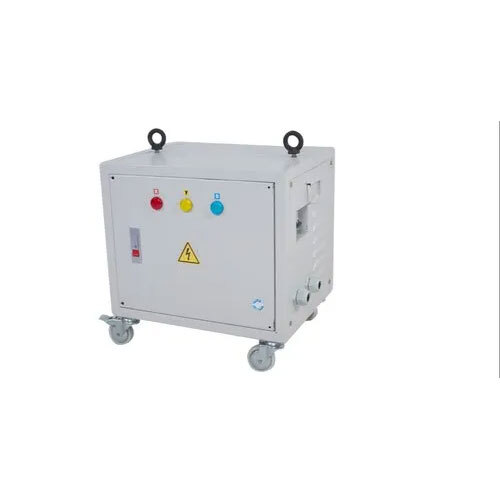

Choke Transformer

Name: Choke Transformer
Brand: AL TEHENE ENTERPRISES PRIVATE LIMITED
Price: 5500 INR
Availability: InStock

Price 5500 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Choke Transformer Specification

Low Voltage
415 V

Operating Temperature
-20C to +55C

Cooling Type
Natural Air Cooled (AN)

Standard
IS 2026 / IEC 60076

Rated Voltage
415 V

Load Loss
Low (as per IS standards)

Coil Material
Copper / Aluminum

High Voltage
Up to 11 kV

Dimension (L*W*H)
Customized, e.g. 450 x 350 x 500 mm

Voltage Booster Type
Dry

Capacity
Up to 50 kVA

Product Type
Choke Transformer

Material
Copper Winding, Laminated Iron Core

Output
Customized, Based on Application

Frequency (MHz)
50-60 Hz

Efficiency
Up to 98%

Phase
Three Phase

Usage
Industrial

Coil Structure
Toroidal / Layer Wound

Coil Number
3

Power Scope
Typically up to 50 kVA

Weight
Approx. 25120 kg (Depending on rating)

Protection Class
IP23 / IP44 (as per enclosure)

Applications
Drives, VFD panels, UPS Systems, CNC Machines

Winding Type
Double Wound

Noise Level
Below 60 dB

Connection Type
Star / Delta

Ambient Humidity
Up to 95% RH Non-condensing

Service Life
15 Years (Typical)

Paint Finish
Powder Coated

Leakage Current
Minimal (as per design)

Testing
Routine and Type Tested as per IS / IEC

Insulation Class
Class F or H

Mounting Type
Floor / Base Mounted

Choke Transformer Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
100 Pieces Per Week

Delivery Time
7 Days

About Choke Transformer

Experience the highlighted performance of our Choke Transformer, designed with insulation classes F or H and a grandiose double-wound coil structure. Featuring IP23/IP44 protection, scarce leakage current, and dazzling noise reduction below 60 dB, this product excels in industrial environments. Benefit from unraveled dry voltage boosting, efficient copper winding, and a powder-coated finish. With customizable output, unbeatable price, and up to 15 years of typical service life, it stands as an unrivaled solution for drives, VFD panels, CNC machines, and more. Quality assured per IS/IEC standards.

Versatility & Application Range

Our Choke Transformer is perfectly suitable for industrial usage in three-phase power systems, including drives, VFD panels, UPS systems, and CNC machines. Its robust floor/base mounting and protection class up to IP44 ensure reliable operation even in high-humidity environments. The transformer is ideal for applications requiring minimal leakage current, low load loss, and consistent efficiency, making it invaluable for demanding and dynamic surface operations.

Reliable Supply & Export Excellence

We offer the Choke Transformer with high market value and strong supply ability, exporting swiftly across key regions such as India, the Middle East, and Africa. Certified according to IS 2026 and IEC 60076, these transformers ensure safety and durability. Our streamlined goods transport, quick dispatch, and strict routine and type testing translate to timely delivery and customer satisfaction in every consignment.

FAQs of Choke Transformer:

Q: How does the Choke Transformer minimize leakage current during operation?

A: The Choke Transformer is designed with advanced insulation and double-wound technology, ensuring that leakage current remains minimal and complies with IS/IEC design standards for safe and reliable performance.

Q: What are the typical applications for this Choke Transformer?

A: This transformer is commonly used in industrial environments such as drives, VFD panels, UPS systems, CNC machines, and other three-phase installations where voltage stability and efficiency are paramount.

Q: Where can I use the Choke Transformer considering protection and operating temperature?

A: Thanks to its IP23/IP44 protection class and operating temperature range from -20C to +55C, this transformer suits floor or base mounted applications in humid and varying climatic conditions.

Q: How is the supply and export process managed for the Choke Transformer?

A: Our supply process guarantees quick dispatch and efficient goods transport, especially for markets in India, Africa, and the Middle East. Each transformer is type and routine tested to ensure quality before export.

Q: What benefit does custom output provide for the Choke Transformer?

A: Custom output ensures the transformer fits specific applications, optimizing voltage, power, and connection needs for diverse industrial setups, enhancing both reliability and operational efficiency.

Q: When can routine and type testing be expected on ordered transformers?

A: Routine and type testing are conducted on every batch prior to dispatch, verifying compliance with IS and IEC standards and ensuring consistent product quality across all shipments.
